China MGW12C Slide Rails Block Corrosion Resistant Compact For PCB/IC wholesale

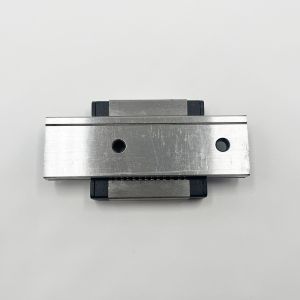

MGW12C Slide Rails Block Corrosion Resistant Compact For PCB/IC

Ask Latest Price

Video Channel

Brand Name :OEM

Model Number :MGW7C

Certification :DE1924083895474

Place of Origin :CHINA

MOQ :10

Price :1-100 USD

Payment Terms :T/T,L/C,D/A,D/P,Western Union

Supply Ability :100000 pcs / per month

Delivery Time :1-7 work days

Packaging Details :Small or with carton box, Bulk order with Wooden box

Series :MGW-Enlarged width type

Model Size(mm) :12 mm

No. of Blocks per Rail :1

Rail Mounting Type :R- Mounting From Top

Rail Length(mm) :Max 1000mm

Preload Class :Z0- Very Light Preload , ZF- Light Clearancer

Material :Std- Carbon Steel , M- Stainless Steel

Dust Protection :SS-standard

Y -Symmetrical (E1＝E2) First hole dimension :Y= Symmetrical （E1=E2)

Installation :Easy

Application :CNC Machines, 3D printer

Smoothness :Smooth

Contact Now

Add to Cart

View Product Description

①MGW12C Stainless Steel Miniature Linear Guideway Machine Slide Rails Block For PCB/IC

The MGW12C Stainless Steel Miniature Linear Guideway is engineered for high-speed, ultra-precision motion control in PCB (Printed Circuit Board) and IC (Integrated Circuit) manufacturing. With a 12mm compact profile, corrosion-resistant stainless steel construction, this linear guideway ensures flawless performance in SMT (Surface Mount Technology) pick-and-place machines, IC test handlers, laser drilling systems, and PCB inspection equipment.

②Model Number of MG Series

MGW12C Slide Rails Block Corrosion Resistant Compact For PCB/IC

Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.

③Construction of MGW Series

1.Rolling circulation system: Block, rail, ball, end cap and retainer [except size 2).
2.Lubrication system: Grease nipple is available for MGW14, 15, lubricated by grease gun.
3.MGW3, 7, 9, 12 are lubricated by the hole at the side of the end cap.
4.Dust protection system: End seal (except size2), bottom seal (optional size 9,12,14,15], cap (size12,14,15).

④Features
1. Tiny and light weight, suitable for miniature equipment.
 2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and
 high accuracy
 3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the
 blocks are removed from the rail.
 4.Interchangeable types are available in certain precision grades.
 Block: we offers two types of linear guideways, flange and square types
 Rail: we offers standard top mounting type

Model No.	Block length(mm)	Preload classes	Bolt size	Weight(kg)
MGW7C	31.2	Z0/ZF/Z1	4-M3x3	0.02
MGW7H	41	Z0/ZF/Z1	4-M3x3	0.029
MGW9C	39.3	Z0/ZF/Z1	4-M3x3	0.04
MGW9H	50.7	Z0/ZF/Z1	4-M3x3	0.057
MGW12C	46.1	Z0/ZF/Z1	4-M3x3.6	0.071
MGW12H	60.4	Z0/ZF/Z1	4-M3x3.6	0.103
MGW15C	54.8	Z0/ZF/Z1	4-M4x4.2	0.143
MGW15H	73.8	Z0/ZF/Z1	4-M4x4.2	0.215
